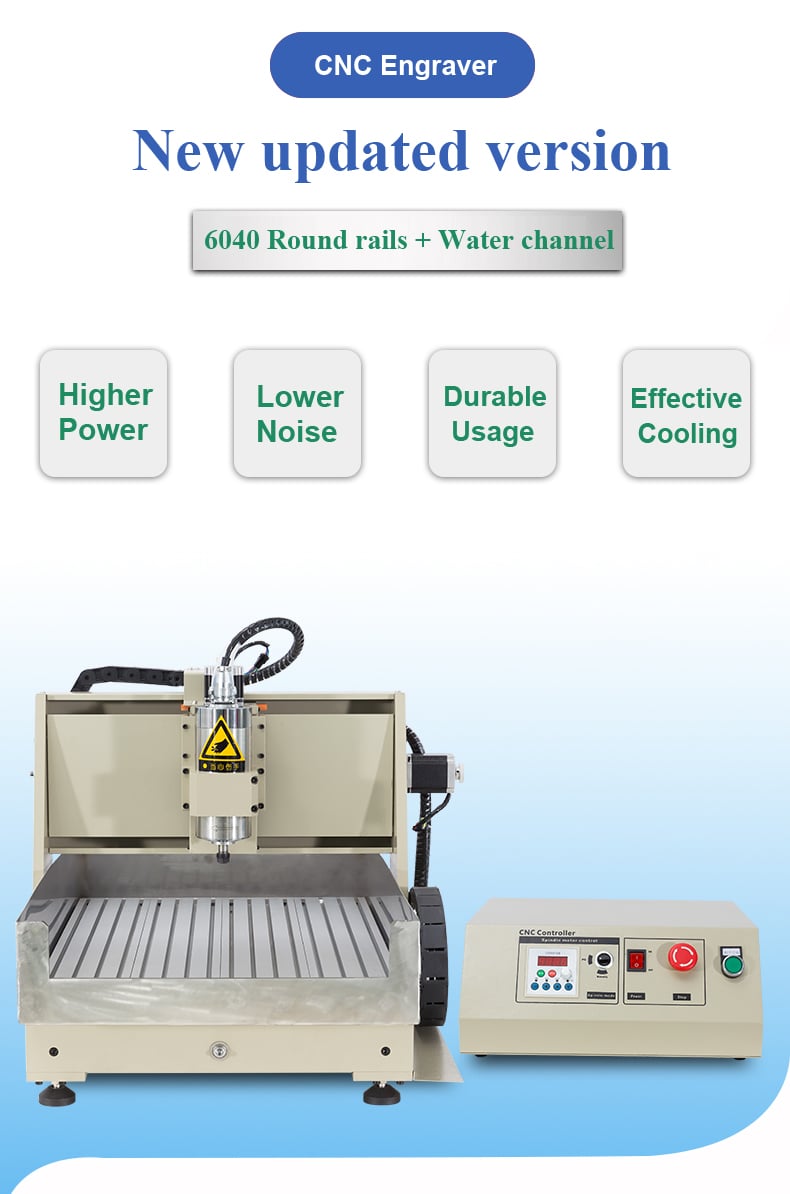

PRTCNC 6040 CNC Engraving Machine
Spindle Power 2.2KW, Round Rail, With water channel, Water Cooling
| Model NO. | CNC6040-2.2KW |

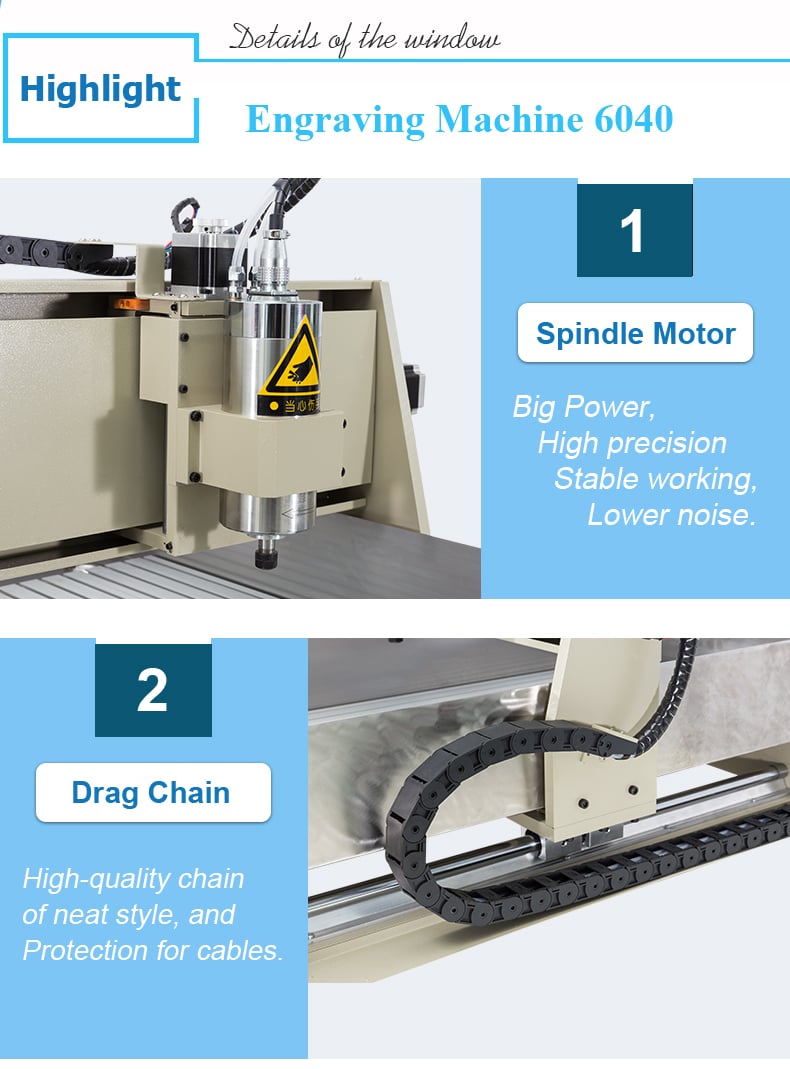

| Spindle Motor | 2.2KW high-speed variable frequency spindle motor, ER11 collet, matching 6mm bur |

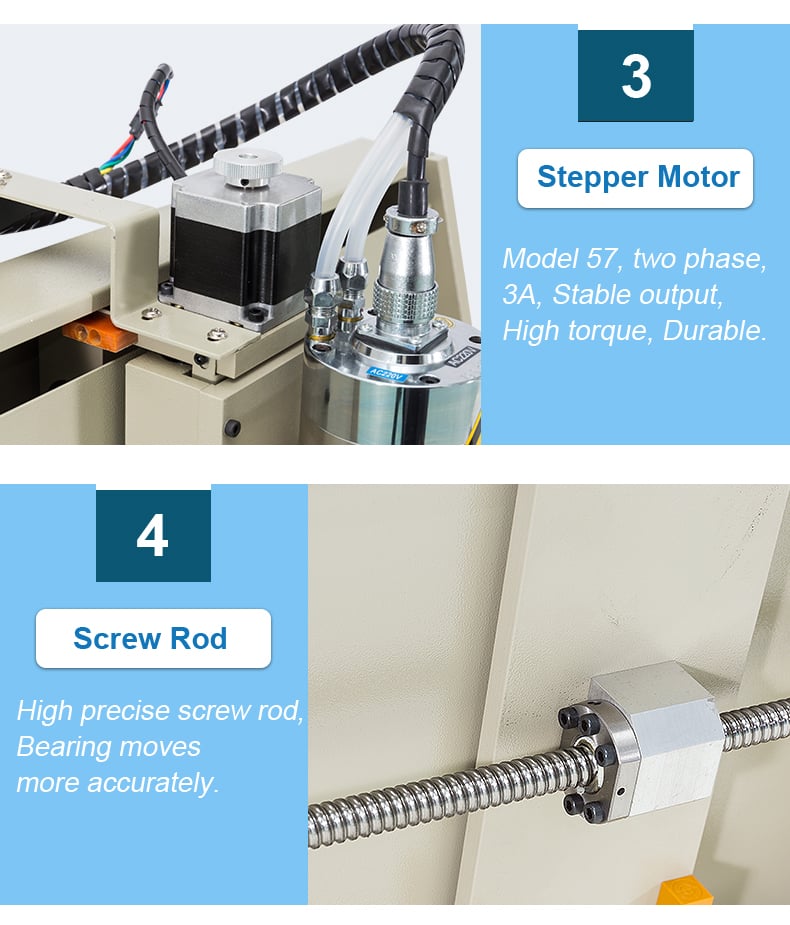

| Stepping Motor | Model 57, two Phase, 3A, with handwheel |
| Driving Power | AC110-220V, 240W; Output DC 24V, 10A |
| Drive of Stepping Motor | 0-3.5A adjustable four-axis drive (TB6560AHQ chip, 24V power supply, 2, 4, 8, 16 Subdivision, Factory setting: 8 subdivided |
| Maximum Idle speed | 1500mm/min |
| Working Speed | 50-1500mm/min(different material with different speed settings) |
| Spindle Precision | Radial runout≤ 0.03mm |
| Repositioning Precision | ≤0.05mm |
| Spindle Speed | 0-24000rpm |
| Cooling Method | Fluid Cooling |
| Carving Command | G code / TAB file / NC / NCC file |
| Protection | Emergency stop button |
| Communication interface | Parallel port to computer |
| Input Volts | AC 220V ( 110V can be customized) |
| Available Software | Mach3 / EMC2 |
| Software Environment | XP 32 bite or Windows 7 32 bite |

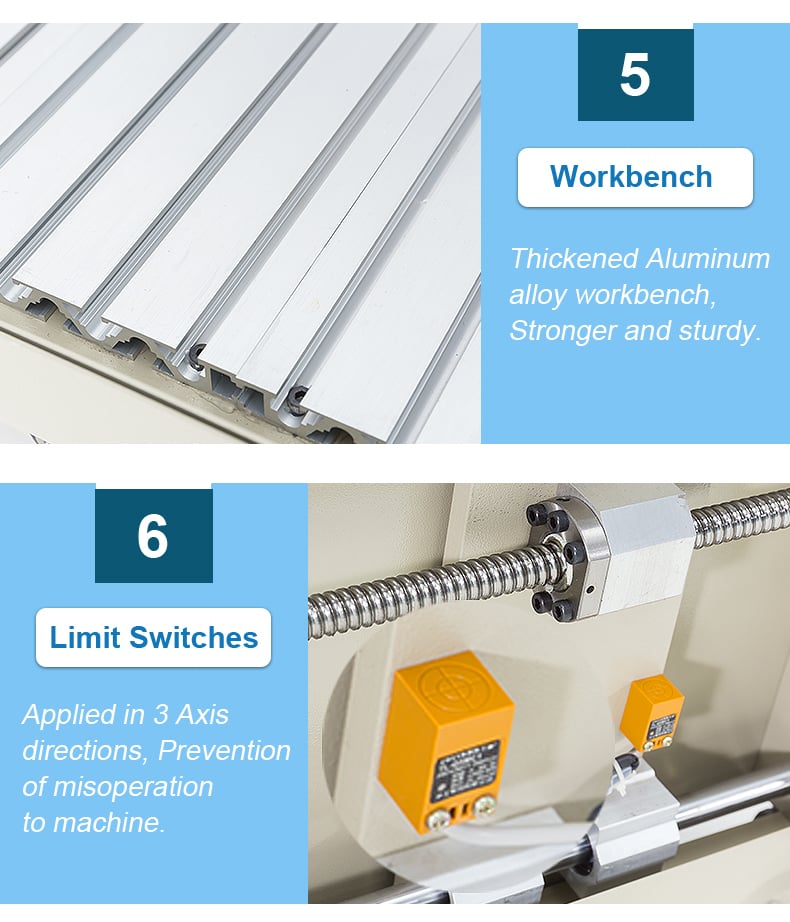

| Protection of Axis | limit switch ( Proximity Sensor ) |
Features:
1.The Water Cooling is available to operate for long time,
which can reinforced the processing ability of the machine and can be used to engrave on aluminum alloy and hard wood.
2.Water cooling spindle works more stable and durable.
3.High quality accurate ball Screws drive make the engraving more precise, and long life of usage.
Please confirm optional accessories according to your specified Model number of engraving machine.
Application:
Woodworking industry: sculpture, round carving, wooden handcraft processing.
Advertising signs:logo making, cutting acrylic, plastic molding, suit for making a variety of materials advertising decorative products
Other industries:The engraver could do shadow-carved, sculpture which widely used in the gift industry; can be used in aluminum cutting industry, such as aluminum, aluminum-plastic plate, aluminum honeycomb panels, aluminum, 3D engraving process, Artificial plate, cutting LED, making plastic light box model; also can engrave on acrylic, copper, PVC board, artificial stone, MDF board, and other metal sheet.
